Overview

The Hypnotik FX controller includes flip-up wire terminals (also called flip tabs) on the back of the enclosure. These accept bare-end wires and allow a secure, tool-free permanent power connection - ideal for professional and in-wall installations.

The flip tab connection is preferred over the barrel jack for permanent wiring because it provides a more reliable, vibration-resistant connection.

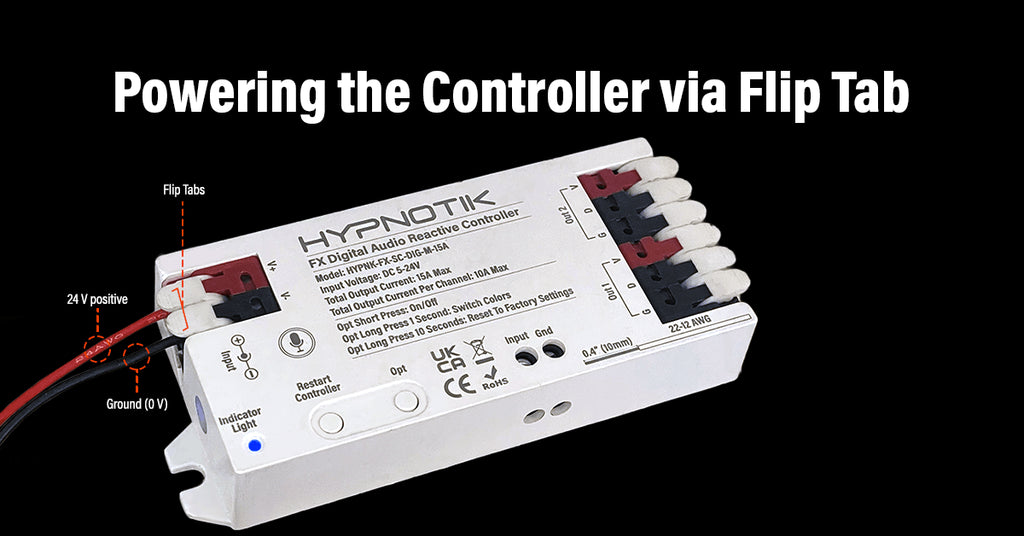

Hypnotik FX Flip Tab Overview


What You Need

  • Hypnotik FX controller (DIG-ALED or X-Pro)
  • 24 V DC power supply (Hypnotik HYP-FX-PS-24V-6A or approved third-party)
  • Appropriately rated DC power cable (see Power Supply Usage Guide)
  • Wire stripper (for bare wire end preparation)

Understanding the Flip Tab Terminal

Each flip tab terminal has two parts:

  • Red flip tab - Pull up to open the terminal clamp; Press down the tab to lock the wire.
  • Wire insertion hole - Insert the stripped wire here.

Two terminals are present:

  • Terminal marked + - Connect the positive (+24 V) conductor
  • Terminal marked - Connect the negative (GND) conductor


Terminal Markings and Polarity

Wire Preparation

  1. Strip approximately 8–10 mm of insulation from the end of each conductor.
  2. If using stranded wire, twist the strands tightly to prevent stray whiskers from causing a short.
  3. Optional: Fit a ferrule (bootlace crimp) to the stripped end for the most reliable connection.


Wire Stripping Guide


Connection Steps

Step 1 - Ensure power is off

Confirm the power supply is not connected to AC power before wiring.


Step 2 - Open the flip tab for the + terminal

Open the red flip tab on the + terminal upward.


Step 3 - Insert the positive wire

While the flip tab is open, insert the positive (+) bare wire end into the hole of the + terminal.

  • Push the wire in until the insulation meets the terminal face.
  • Release the flip tab - it springs back and clamps the wire firmly.

Step 4 - Repeat for the negative terminal

Pull the black flip tab clamp on the terminal, insert the negative (GND) bare wire end, and release.


Step 5 - Verify connections

Gently tug each wire to confirm it is securely held. A properly seated wire will not pull out easily.

Verify:

  • + terminal has the positive conductor (typically red)
  • terminal has the negative conductor (typically black)
  • No bare wire strands are exposed outside the terminal

Step 6 - Connect AC power

Connect the power supply to the wall outlet. The controller will power on.


Releasing a Wire

To remove a wire from a flip tab terminal:

  1. Pull the flip tab upward.
  2. The wire will release - pull it straight out.

Wire Gauge Recommendation

Total LED Load Minimum Wire Gauge
Up to 5 A (120 W) 18 AWG (0.75 mm²)
Up to 6 A (144 W) 16 AWG (1.0 mm²)
Up to 10 A 14 AWG (1.5 mm²)
