Wiring: Vibe X4 Ultra RGB + 3000K
May 12, 2026
Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X4 Ultra Color + White | SKU: HYP-X4-LU-RGBW | Vibe Model: Ultra Color + White
Strip Overview
| Specification | Value |
|---|---|
| Easy Name | Ultra Color + White |
| Color Type | RGB + Fixed 3000K White |
| Channels Used | 4 (R, G, B, W) |
| Roll Length | 5 meters (16.4 ft) |
| Voltage | 24 V DC |
| Type | Vibe X4 analog PWM |
| Warranty | 5 Years |
RGBW strip with a single fixed 3000K white channel. Provides full colour control plus a dedicated neutral-warm white. The white channel is fixed at 3000K — for adjustable colour temperature, see the Ultra RGB + 2700K–6000K.

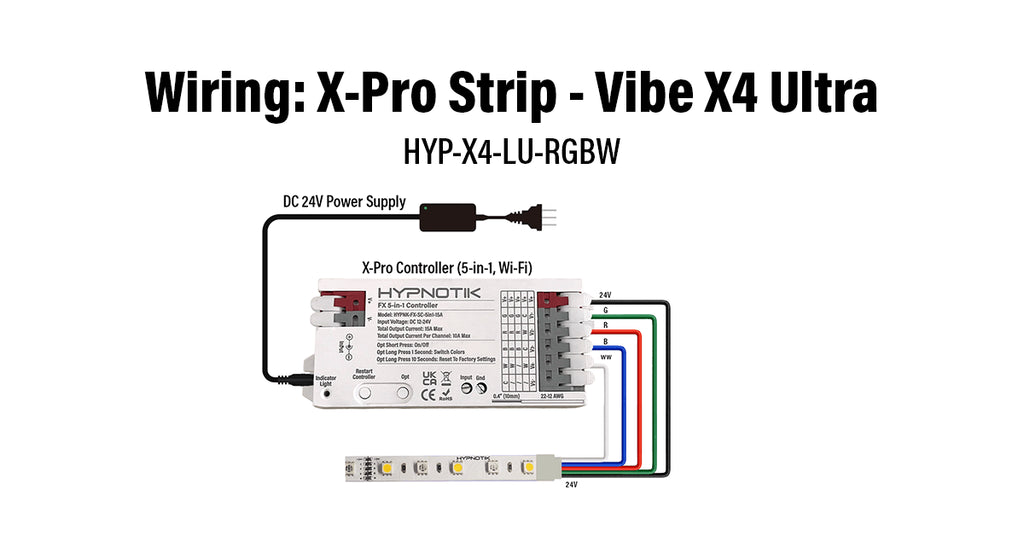

Wiring Diagram
Terminal Connections
| X-Pro Terminal | Strip Wire | Channel |
|---|---|---|
+ |
Strip common +
|
Positive supply |
CH1 |
Green −
|
Green |
CH2 |
Red −
|
Red |
CH3 |
Blue −
|
Blue |
CH4 |
White −
|
3000K Warm White |
- CH5 not used.
Step-by-Step Connection
- Power off the controller and power supply.
- Connect strip common (+) →
+terminal. - Connect Green (−) →
CH1. - Connect Red (−) →
CH2. - Connect Blue (−) →
CH3. - Connect White (−) →
CH4. - Leave CH5 empty.
- Power on.
Firmware Settings
Go to Settings → LED Preferences:
| Setting | Value |
|---|---|
| LED Type | PWM RGBW |
| Color Order | RGBW |
| Ch1 Pin | GPIO 18 (Green) |
| Ch2 Pin | GPIO 19 (Red) |
| Ch3 Pin | GPIO 17 (Blue) |
| Ch4 Pin | GPIO 16 (White) |
