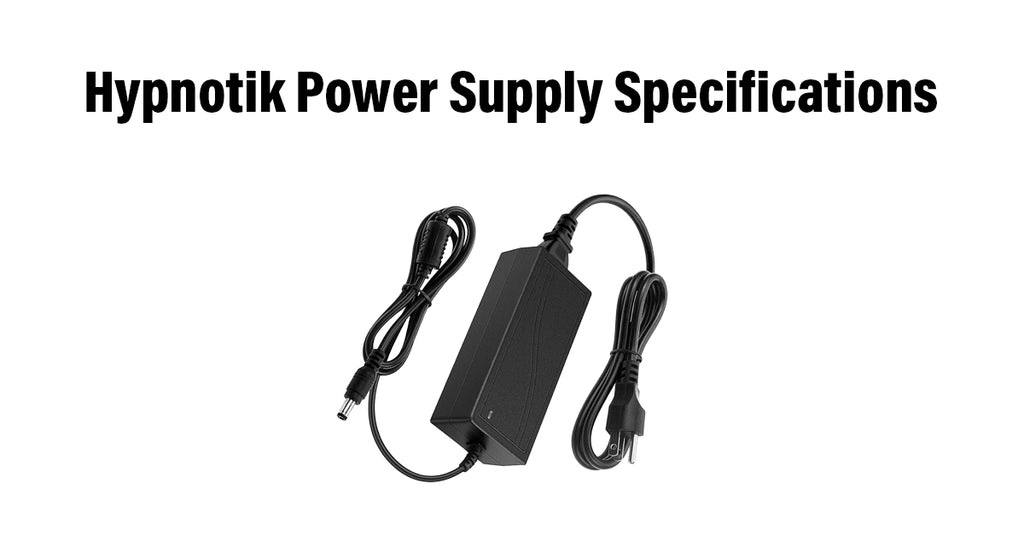

Hypnotik Power Supply Specifications
April 20, 2026
Section: Basic Hardware Setup Product: Hypnotik FX Power Supply · SKU: HYP-FX-PS-24V-6A
Overview
The Hypnotik FX Power Supply is a dedicated 24V DC power supply designed to work with the Hypnotik FX controller and all Hypnotik Vibe linear lighting products. It provides clean, regulated power for both the controller and the LED strip load.
Electrical Specifications
| Specification | Value |
|---|---|
| Model | HYP-FX-PS-24V-6A |
| Input Voltage | 100–240 V AC (universal) |
| Input Frequency | 50/60 Hz |
| Output Voltage | 24 V DC |
| Output Current | 6 A |
| Output Power | 144 W |
| Efficiency | ≥ 88% (typical) |
| Warranty | 3 Years |
Compatible Products
This power supply is designed to power:
| Product | Controller | LED Strip |
|---|---|---|
| Vibe Pixel Kit | HYP-FX-SC-DIG-M-15A (DIG-ALED) | Vibe Pixel strips |
| Vibe X5 Kit | HYP-FX-SC-5-IN-1-15A (X-Pro) | Vibe X5 strips |
Connections
The power supply has two connection points:
Input (AC Side)
A pre-attached AC power cord connects the supply to a standard wall outlet.
- The cable is rated for the input voltage range (100–240 V AC).
- Do not modify or extend the input cable.
Output (DC Side - to Controller)
The DC output connects to the Hypnotik FX controller using one of two methods:
- Barrel Jack connector - plug into the barrel jack port on the controller.
- Flip Tab terminals - Flip-up wire terminals on the controller.
The output cable has two conductors:
- Red (+) - 24 V positive
- Black (−) - Ground (0 V)
See:
Load Capacity
The power supply delivers up to 144 W (24 V × 6 A).
Use this table to estimate how much strip length the supply can support:
| LED Strip | Typical Power Per Meter | Max Length at 144 W |
|---|---|---|
| Vibe Pixel COB 784LPM | ~10–12 W/m | ~12–14 m |
| Vibe Pixel COB 720LPM | ~10–12 W/m | ~12–14 m |
| Vibe Pixel 60LPM RGB | ~3–4 W/m | ~36–48 m |
| Vibe Pixel 144LPM RGB | ~8–10 W/m | ~14–18 m |
| Vibe X5 (all variants) | Varies by channel count | See strip data sheet |
For installations exceeding 144 W of LED load, use multiple power supplies. Do not exceed the supply's rated output current.
Safety Notes
- Ensure the power supply is installed in a dry location unless otherwise rated.
- Allow adequate ventilation around the power supply - do not block airflow.
- Use the correct voltage (24 V) controller and strips. Mismatched voltage will damage equipment.
- Do not short-circuit the DC output terminals.
- The power supply includes overcurrent and overvoltage protection.
