Wiring: Vibe X5 RGB + Tunable Zero-Dot
May 13, 2026
Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X4 Ultra Color + Tunable | SKU: HYP-X4-LU-RGBCW | Vibe Model: Ultra Color + Tunable
Strip Overview
| Specification | Value |
|---|---|
| Easy Name | Ultra Color + Tunable |
| Color Type | RGB + Tunable White (1800K warm + 6000K cool) |
| Channels Used | 5 (R, G, B, Warm White, Cool White) |
| Roll Length | 4 meters (13.1 ft) |
| Voltage | 24 V DC |
| Type | Vibe X4 analog PWM |
| Warranty | 5 Years |
This is the full 5-channel strip: three colour channels (RGB) plus two white channels (tunable warm/cool). It provides the complete colour and colour temperature control possible from a single strip, using all 5 controller channels.

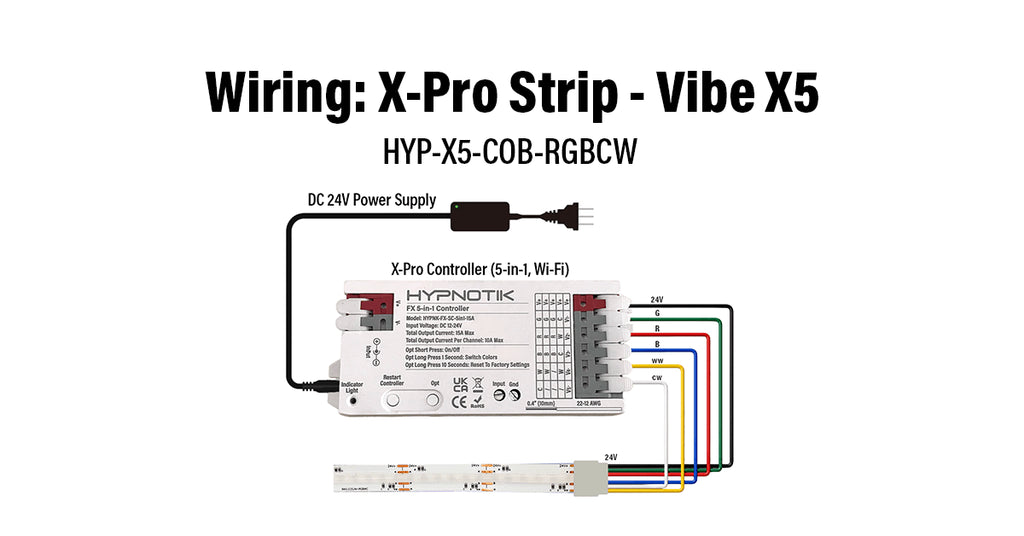

Wiring Diagram
Terminal Connections
| X-Pro Terminal | Strip Wire | Channel |
|---|---|---|
+ (Common +24 V) |
Strip common +
|
Positive supply |
CH1 |
Green −
|
Green |
CH2 |
Red −
|
Red |
CH3 |
Blue −
|
Blue |
CH4 |
Warm White −
|
~2700K warm white |
CH5 |
Cool White −
|
~6000K cool white |
All 5 channels plus the common positive are used.
Step-by-Step Connection
- Power off the controller and power supply.
- Connect strip common (+) → X-Pro
+terminal. - Connect Green (−) →
CH1. - Connect Red (−) →
CH2. - Connect Blue (−) →
CH3. - Connect Warm White (−) →
CH4. - Connect Cool White (−) →
CH5. - Verify all 6 connections, then power on.
Firmware Settings
Go to Settings → LED Preferences:
| Setting | Value |
|---|---|
| LED Type | PWM RGBCCT |
| Color Order | RGBCW |
| Ch1 Pin | GPIO 18 (Green) |
| Ch2 Pin | GPIO 19 (Red) |
| Ch3 Pin | GPIO 17 (Blue) |
| Ch4 Pin | GPIO 16 (Warm White) |
| Ch5 Pin | GPIO 4 (Cool White) |
