Wiring: Vibe X5 Tunable Fluid 2400K–5000K
May 13, 2026
Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X5 Fluid Tunable | SKU: HYP-X5-FL-CW | Vibe Model: Fluid Tunable
Strip Overview
| Specification | Value |
|---|---|
| Easy Name | Fluid Tunable |
| SKU | HYP-X5-FL-CW |
| Color Type | Tunable White — 2400K to 5000K |
| Channels Used | 2 (Warm + Cool) |
| Roll Length | 5 meters (16.4 ft) |
| Voltage | 24 V DC |
| Type | Vibe X5 analog PWM |
| Warranty | 5 Years |
The Fluid Tunable strip provides tunable white from 2400K (warm evening) to 5000K (bright daylight) — covering the most common range used in residential and commercial applications.

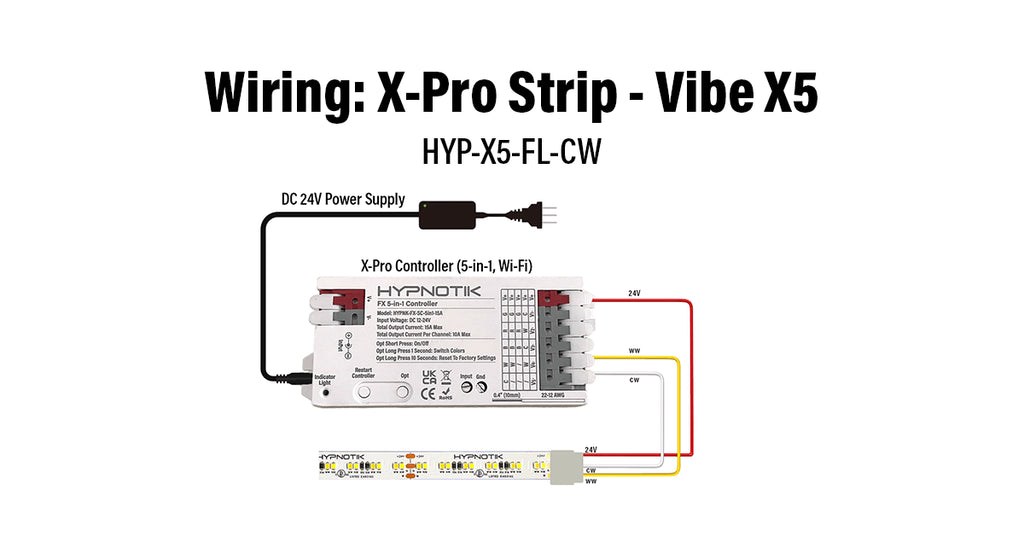

Wiring Diagram
Terminal Connections
| X-Pro Terminal | Strip Wire | Channel |
|---|---|---|
+ |
Strip common +
|
Positive supply |
CH4 |
Warm − (2400K) |
Warm channel |
CH5 |
Cool − (5000K) |
Cool channel |
- CH1–CH3 are not used.
Step-by-Step Connection
- Power off the controller and power supply.
- Connect strip common (+) → X-Pro
+terminal. - Connect strip Warm (2400K) (−) → X-Pro
CH4terminal. - Connect strip Cool (5000K) (−) → X-Pro
CH5terminal. - Leave CH1–CH3 empty.
- Power on.
Firmware Settings
Go to Settings → LED Preferences:
| Setting | Value |
|---|---|
| LED Type | PWM CCT |
| Ch4 Pin | GPIO 16 (Warm) |
| Ch5 Pin | GPIO 4 (Cool) |
| Default CCT | Mid-range (~3700K) |
