Vibe X5 Kit - Linear Lighting + Controllers + Power Supply

SKU: HYP-KIT-X5-COB-RGBCW

Hurry! Only 0 Left in Stock!

Zero-Dot
Fluid
RGB + Tuneable
Tuneable
RGB + 2700K - 6500K
2700K - 6500K
2400K - 5000K

Features

5 Meter Roll
5 Meter Roll
Control4 SDDP
Control4 SDDP
Color
Color
Tunable White
Tunable White
Zero-Dot
Zero-Dot
Remote Control
Remote Control
App Control
App Control
5 Years Warranty
5 Years Warranty

Vibe X5 Kit - Complete Linear Lighting System

Get everything you need for professional linear lighting in one complete kit. The Vibe X5 Kit combines premium Vibe X5 linear lighting strips, professional FX 5-in-1 controller, and matched 24V power supply for seamless installation and optimal performance. Perfect for Control4 integrators and installers who want a complete, tested system.

💡 Complete System Solution: Professionally matched components ensure Control4 SDDP compatibility and flawless performance. Everything included for immediate installation with tunable white precision, advanced LED technology, and multiple control options through Hypnotik FX iOS and Android apps, 4BRL remote control, and automation systems.

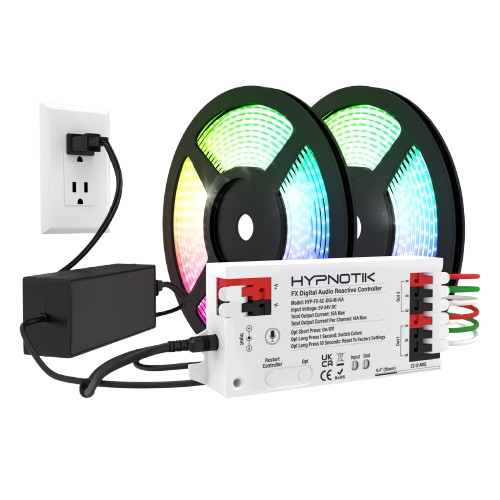

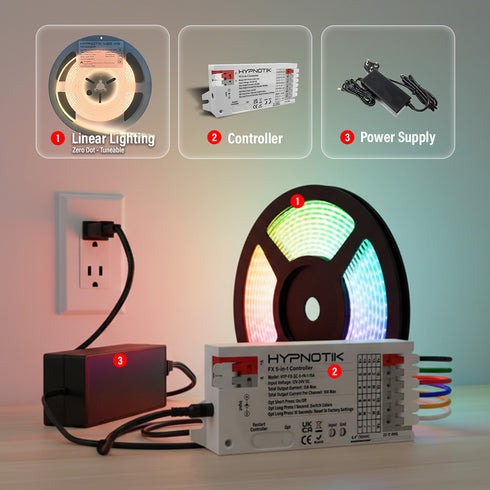

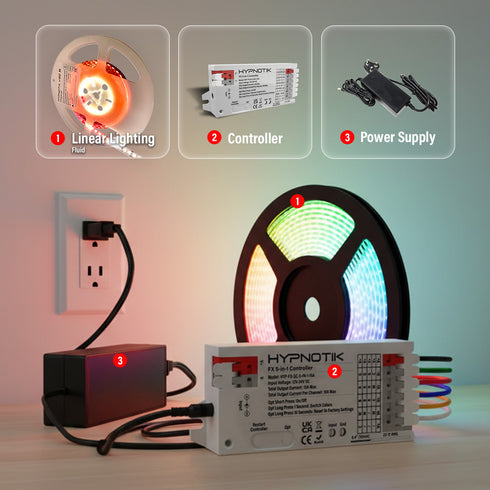

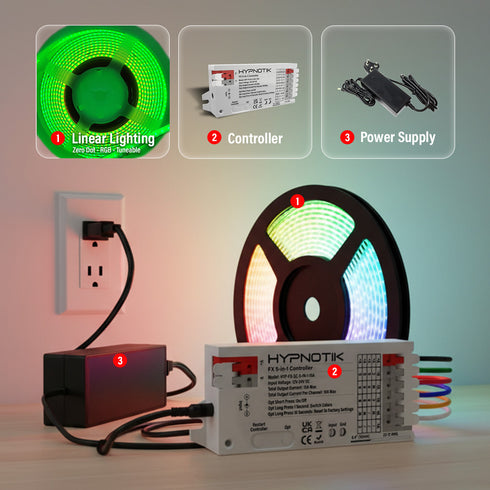

Kit Includes:

  • Vibe X5 Linear Lighting - Choice of Tuneable Zero-Dot, Tuneable Fluid, or RGB + Tuneable Zero-Dot with premium COB technology and tunable white capability
  • Hypnotik FX 5-in-1 Controller - Professional universal controller for complete lighting control with 15A total output
  • 24V 5A Power Supply - Matched power delivery for optimal controller and system performance
  • Complete Documentation - Installation guides and specifications for professional setup

System Benefits:

  • Pre-Matched Components - Tested together for guaranteed compatibility and performance

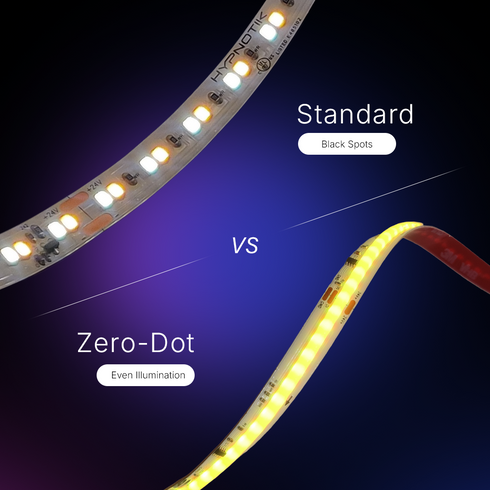

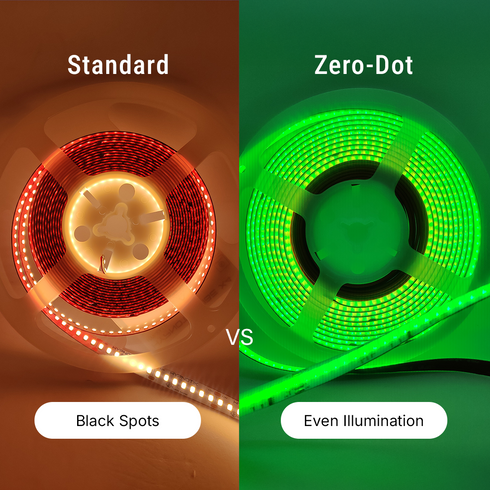

  • Zero-Dot COB Technology - Premium options with smooth, continuous lighting without visible LED segments
  • Professional Installation Ready - Everything needed for immediate deployment
  • Control4 Certified - Native SDDP support for seamless automation integration
  • Universal 5-in-1 Control - Controller supports all linear lighting types and configurations
  • Complete Warranty - Full system coverage with professional support

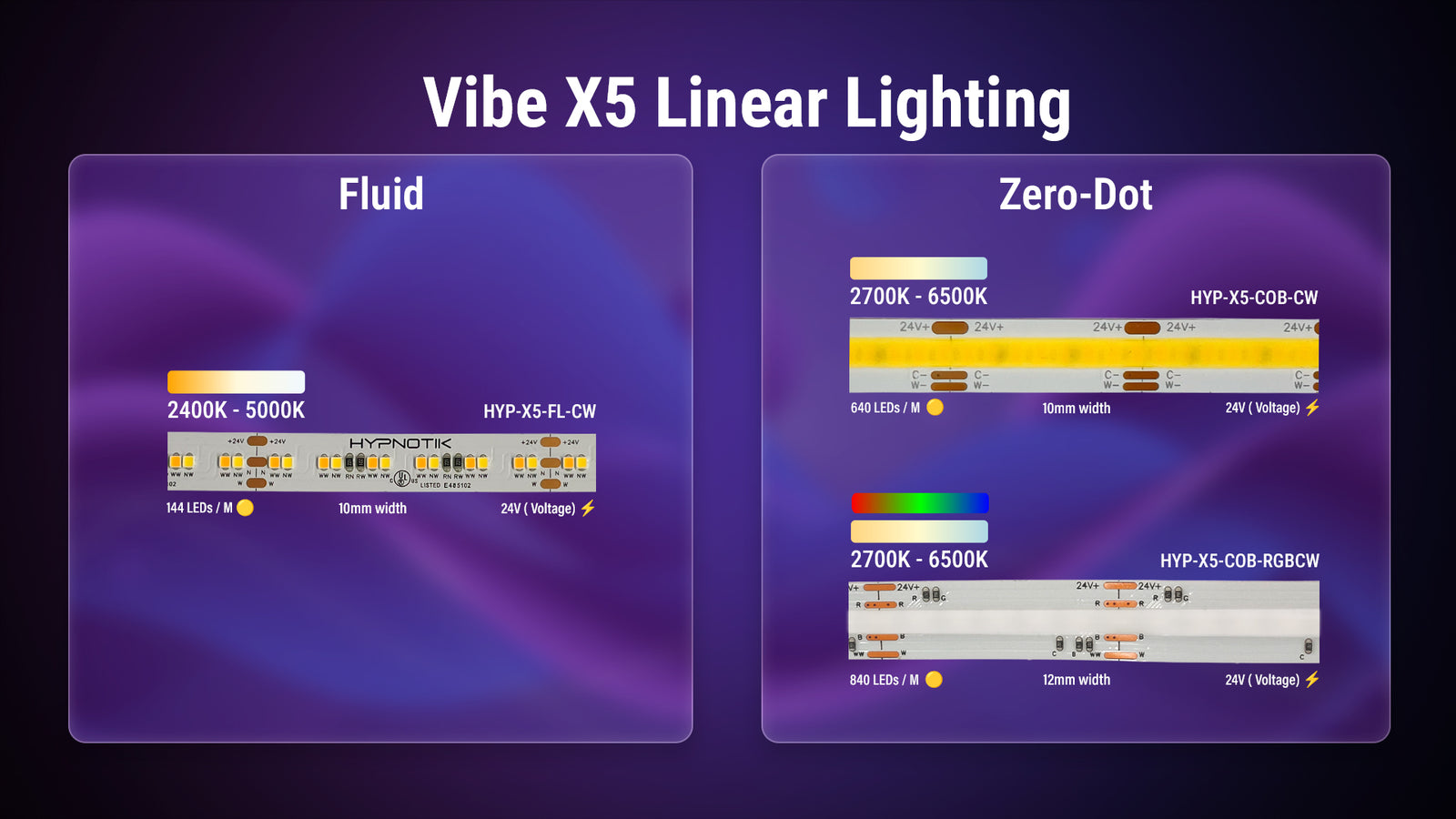

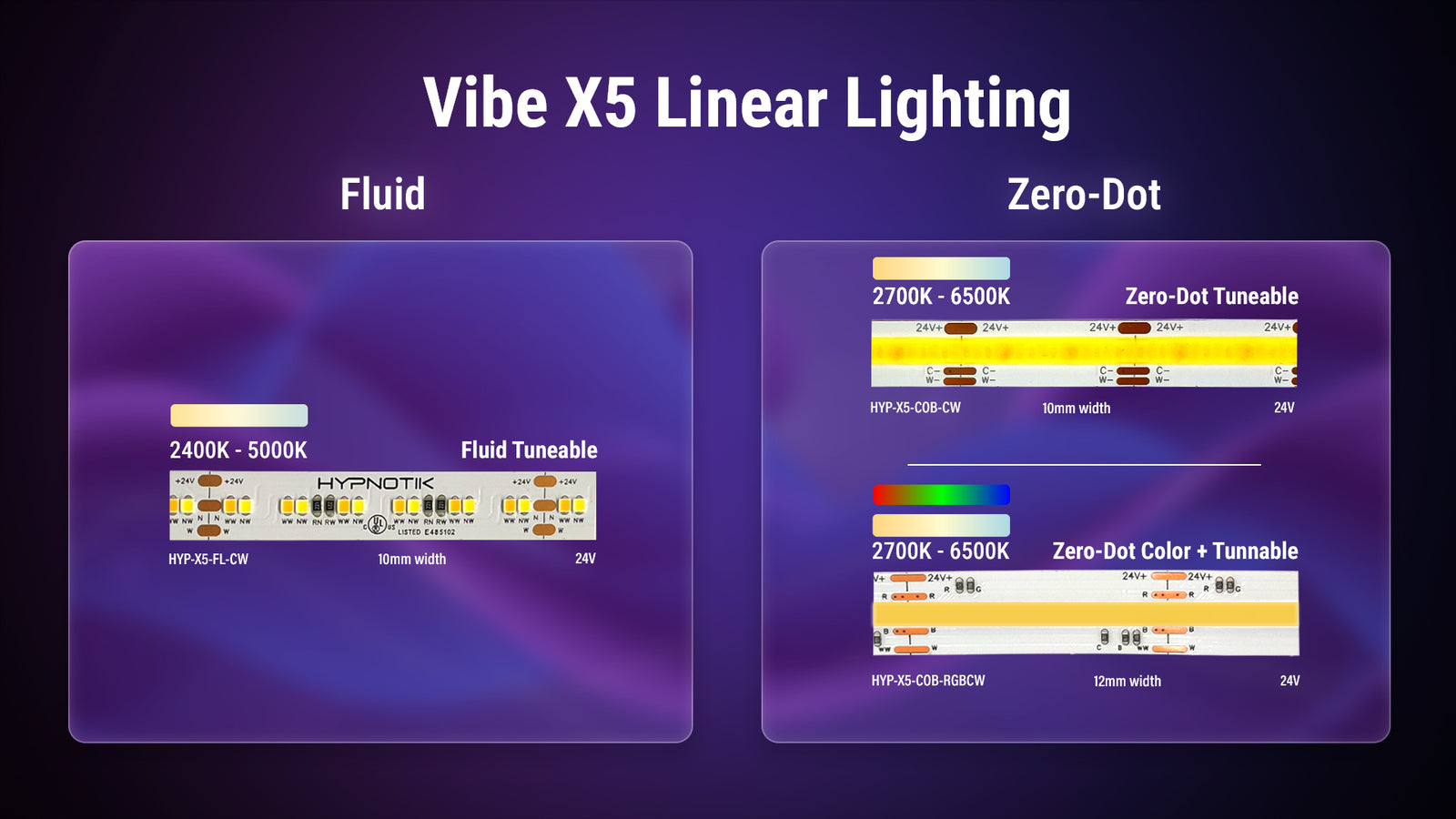

Available Configurations:

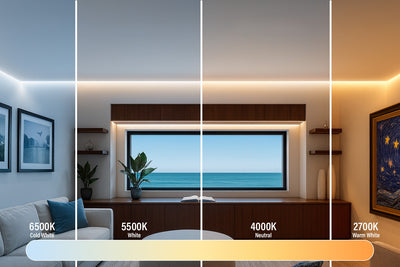

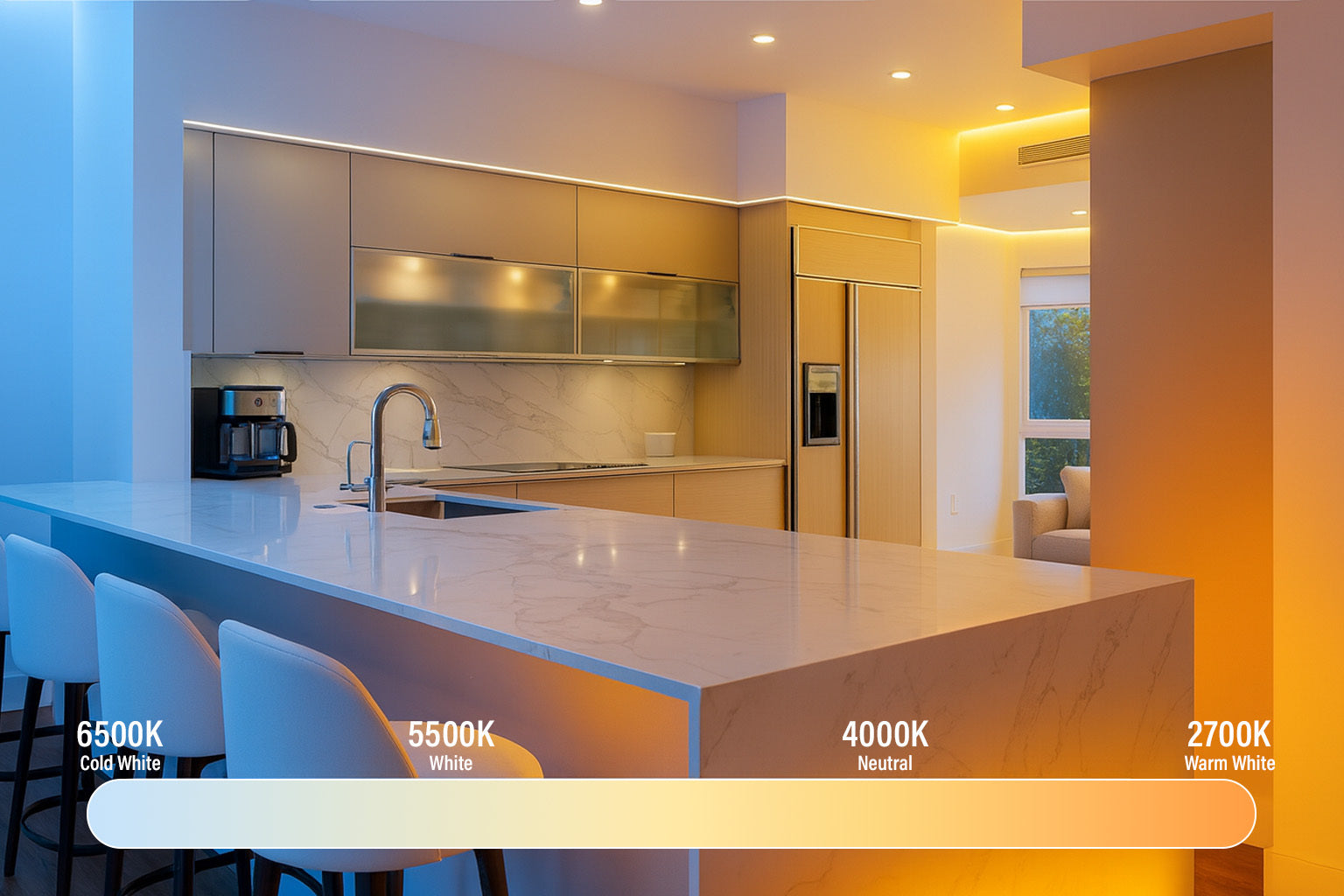

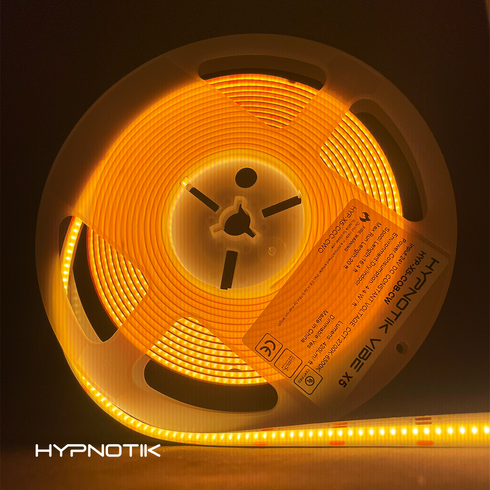

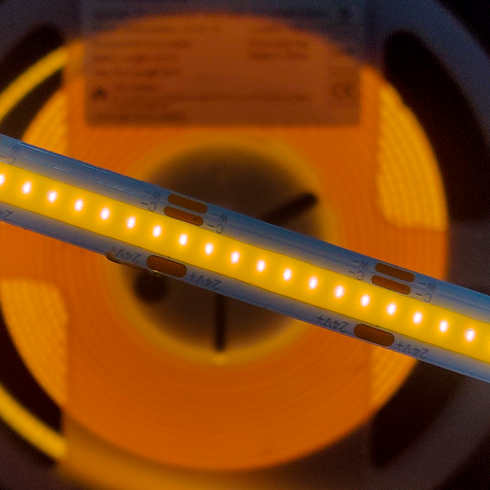

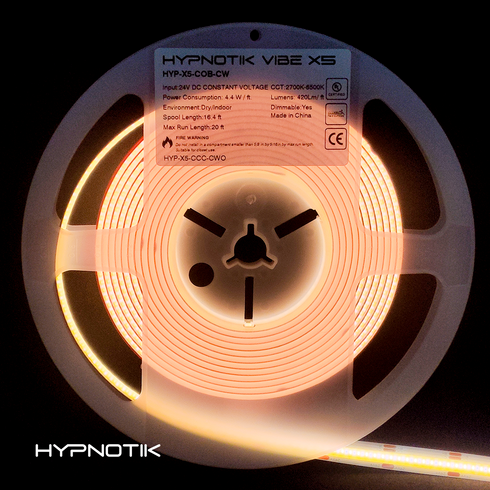

  • Tuneable Zero-Dot Kit - Premium COB with 2700K-6500K tunable white perfection (420 Lm/ft)

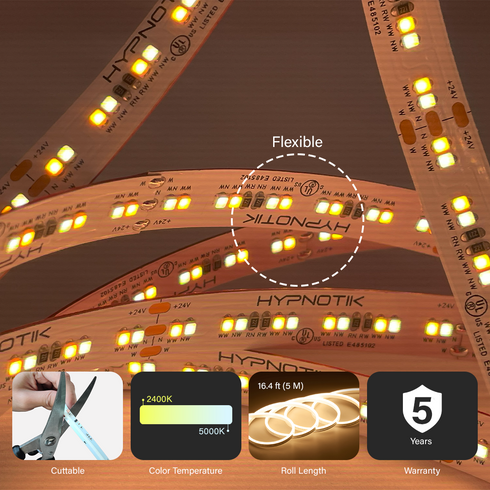

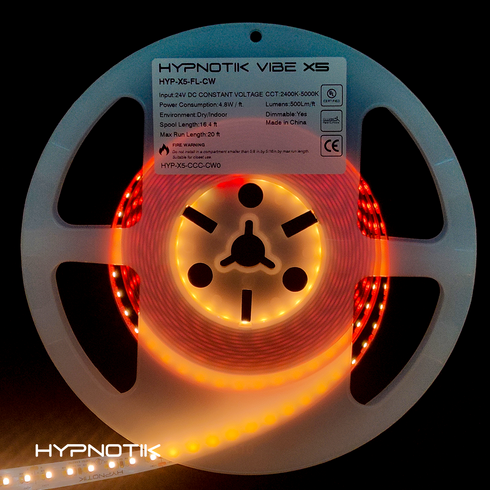

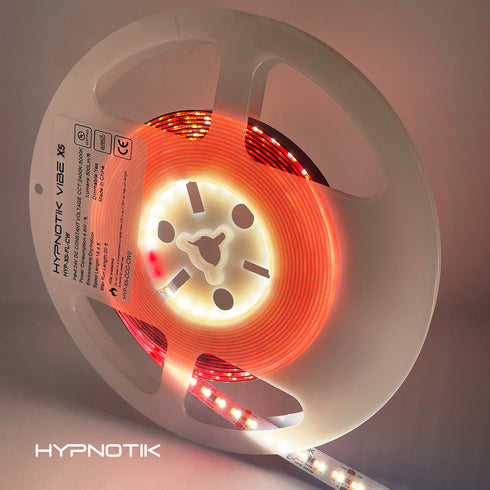

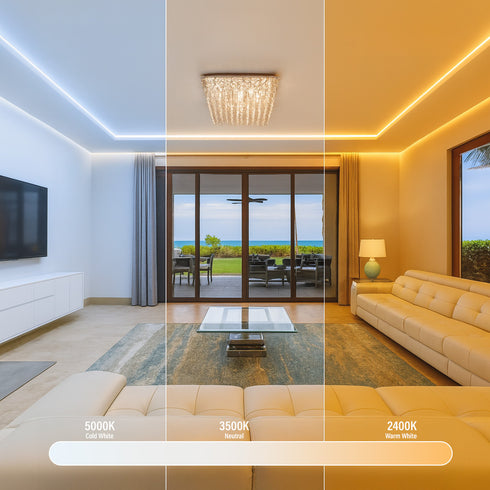

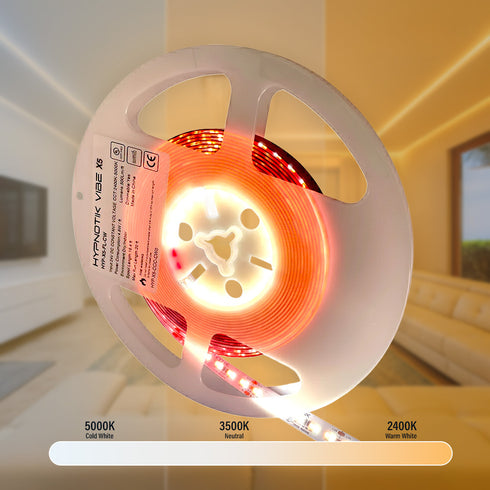

  • Tuneable Fluid Kit - High-efficiency SMD with 2400K-5000K tunable white precision (504 Lm/ft)

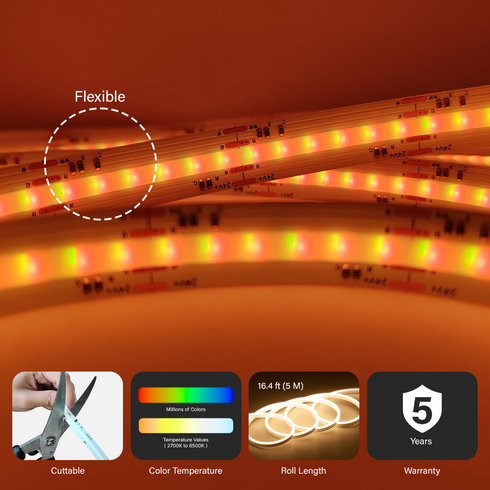

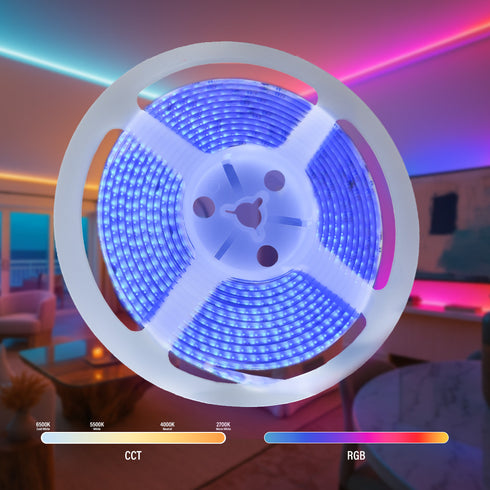

  • RGB + Tuneable Zero-Dot Kit - Ultimate model combining full RGB spectrum with tunable white (319 Lm/ft)

Perfect for: Control4 integrators, professional installers, luxury residential projects, and commercial applications requiring complete linear lighting solutions.

Simplify your installations with a complete, tested system. Includes full warranty coverage and professional technical support for the entire kit.

Vibe X5 Specifications

Specification Vibe X5 Tuneable Zero-Dot (5m) Vibe X5 Tuneable Fluid (5m) Vibe X5 RGB + Tunable Zero-Dot (5m)
SKU HYP-X5-COB-CW HYP-X5-FL-CW HYP-X5-COB-RGBCW

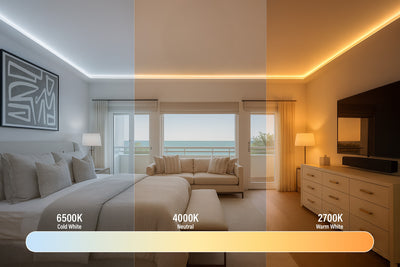

Color Temperature 2700K-6500K 2400K-5000K 2700K-6500K
Roll Length 5 Meter Roll (16.4 ft) 5 Meter Roll (16.4 ft) 5 Meter Roll (16.4 ft)
Voltage 24 V 24 V 24 V
Watts Per Foot 4.4 W / FT 4.8 W / FT 6.14 W / FT

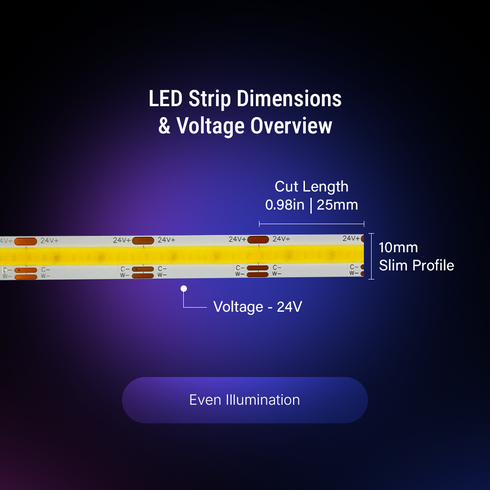

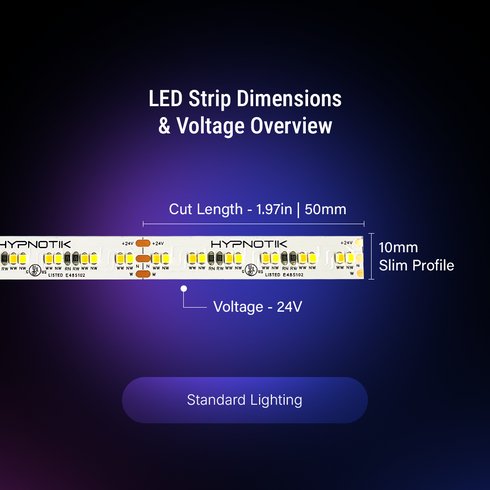

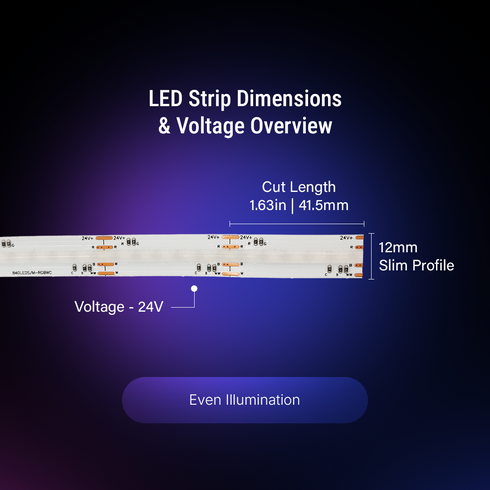

Cut Length 25 mm 50 mm 41.5 mm
Max Run 22 FT 20 FT 16 FT
Lumens 420 LM/FT 504 LM/FT 319 LM/FT
CRI 90+ 90+ 90+
Weather Rating IP20 IP20 IP20
PCB Width 10 mm 10 mm 12 mm
Backing 3M VHB 3M VHB 3M VHB
Operating Temperature -13˚ F to 113˚ F (-25˚ C to 45˚ C) -13˚ F to 113˚ F (-25˚ C to 45˚ C) -13˚ F to 113˚ F (-25˚ C to 45˚ C)
Warranty 5 years 5 years 5 years

FX 5-in-1 Controller Specifications

Model FX 5-in-1 Controller
SKU HYP-FX-SC-5-IN-1-15A
Input Voltage 12V-24V DC
Total Output Current 15A Max
Output Current Per Channel 10A Max
Compatibility Universal 5-in-1 Linear Lighting
Control4 Integration Native SDDP Support
Dimensions 4.25" x 1.77" x 0.70"
(L 108 x W 45 x H 18 mm)
Weather Rating IP20
Net Weight 56.4g
Operating Temperature -4˚ F to 113˚ F (-20˚ C to 45˚ C)
Warranty 7 years

Power Supply Specifications

Component 24V Power Supply
Output Voltage 24V DC
Output Current 5A Max
Total Power 120W
Purpose Powers FX 5-in-1 Controller
Compatibility Hypnotik FX Controllers

Documents

Downloads

Product Features

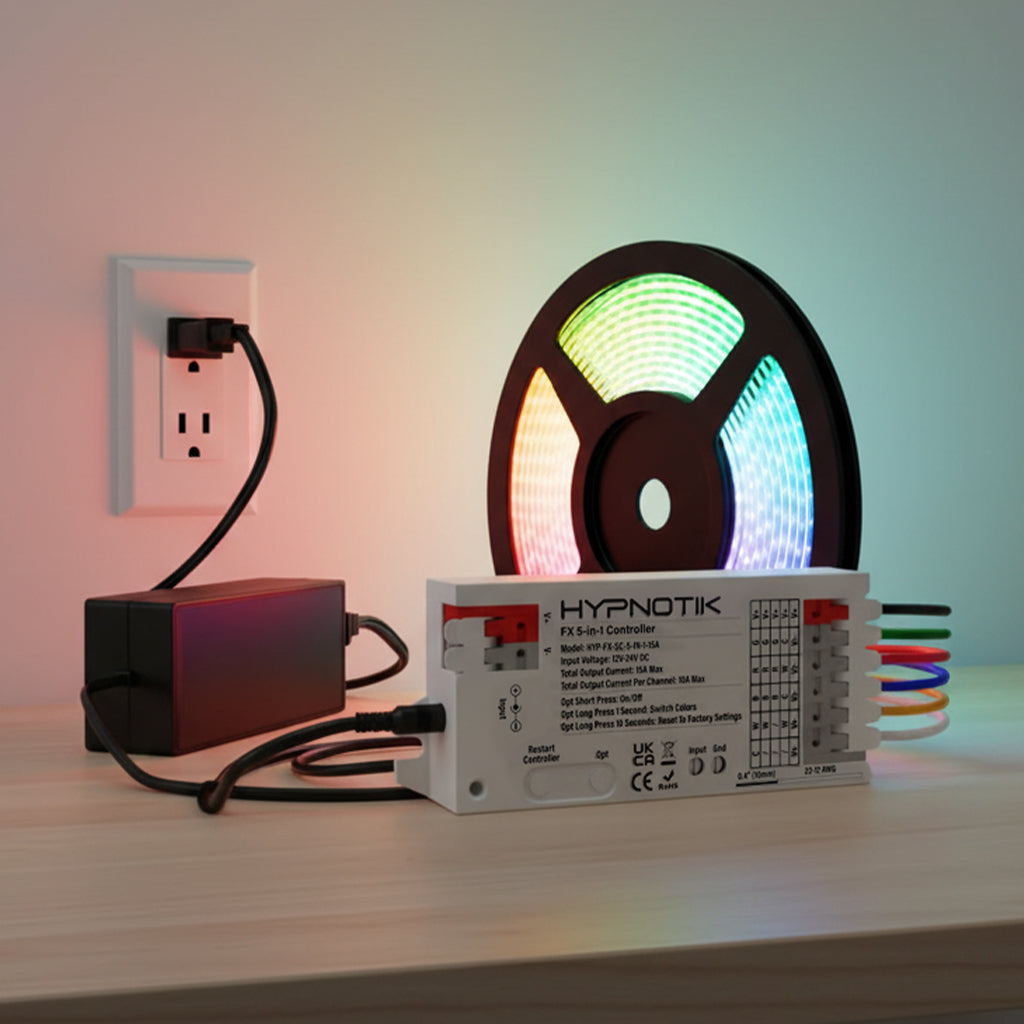

Pre-Matched Components

Tested together for guaranteed compatibility and performance.
title:Pre-Matched Components///desc:Tested together for guaranteed compatibility and performance.

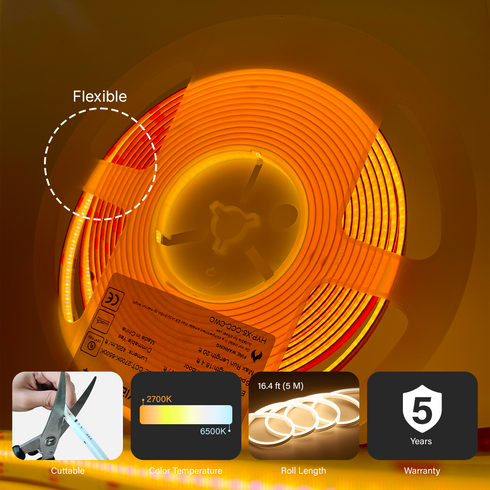

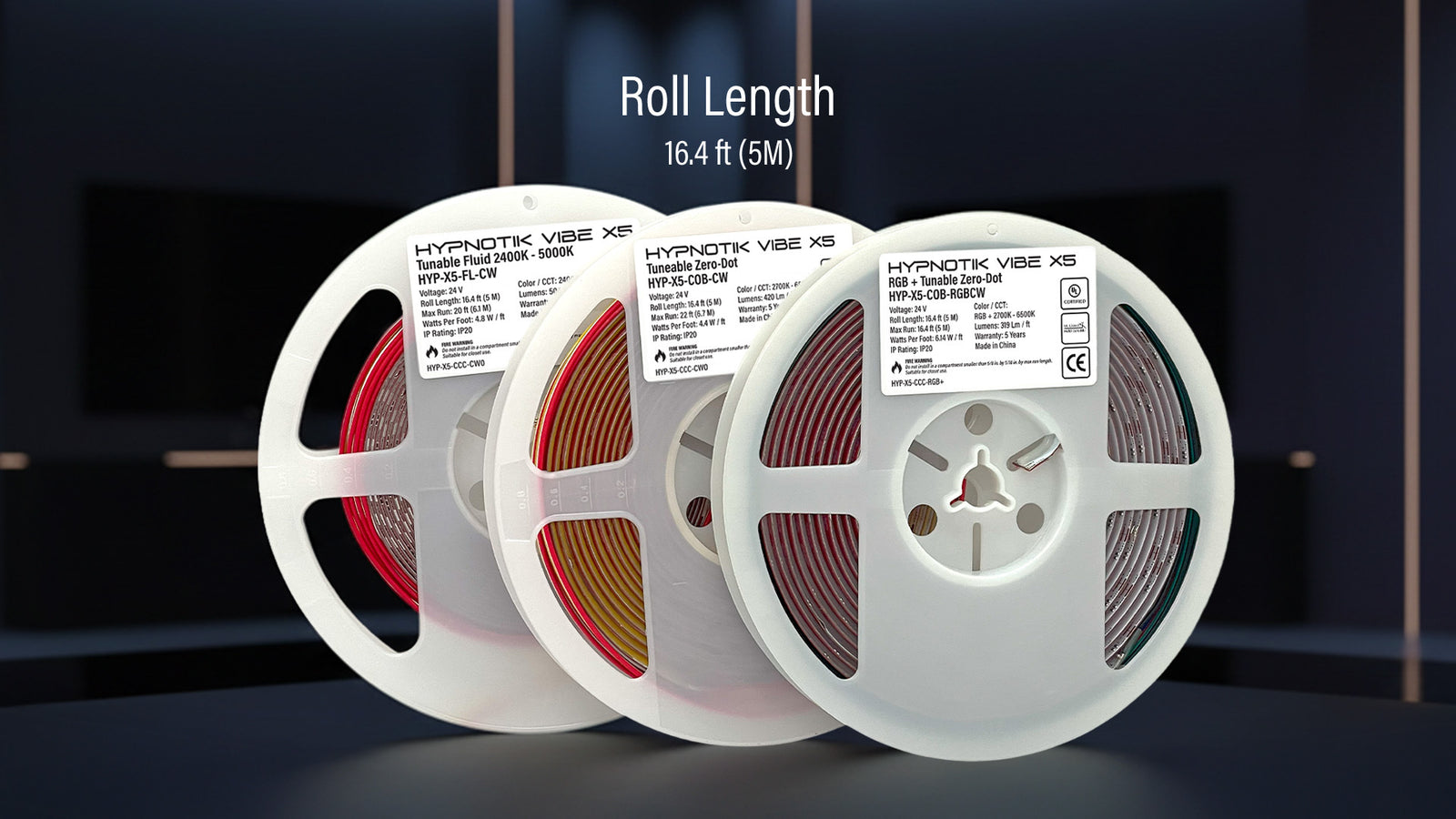

title:📏 Flexible Length Options///desc:Supplied in 5-meter rolls, each strip can be cut to fit smaller areas or extended—up to the maximum run length—for seamless integration into any space.

📏 Flexible Length Options

Supplied in 5-meter rolls, each strip can be cut to fit smaller areas or extended—up to the maximum run length—for seamless integration into any space.

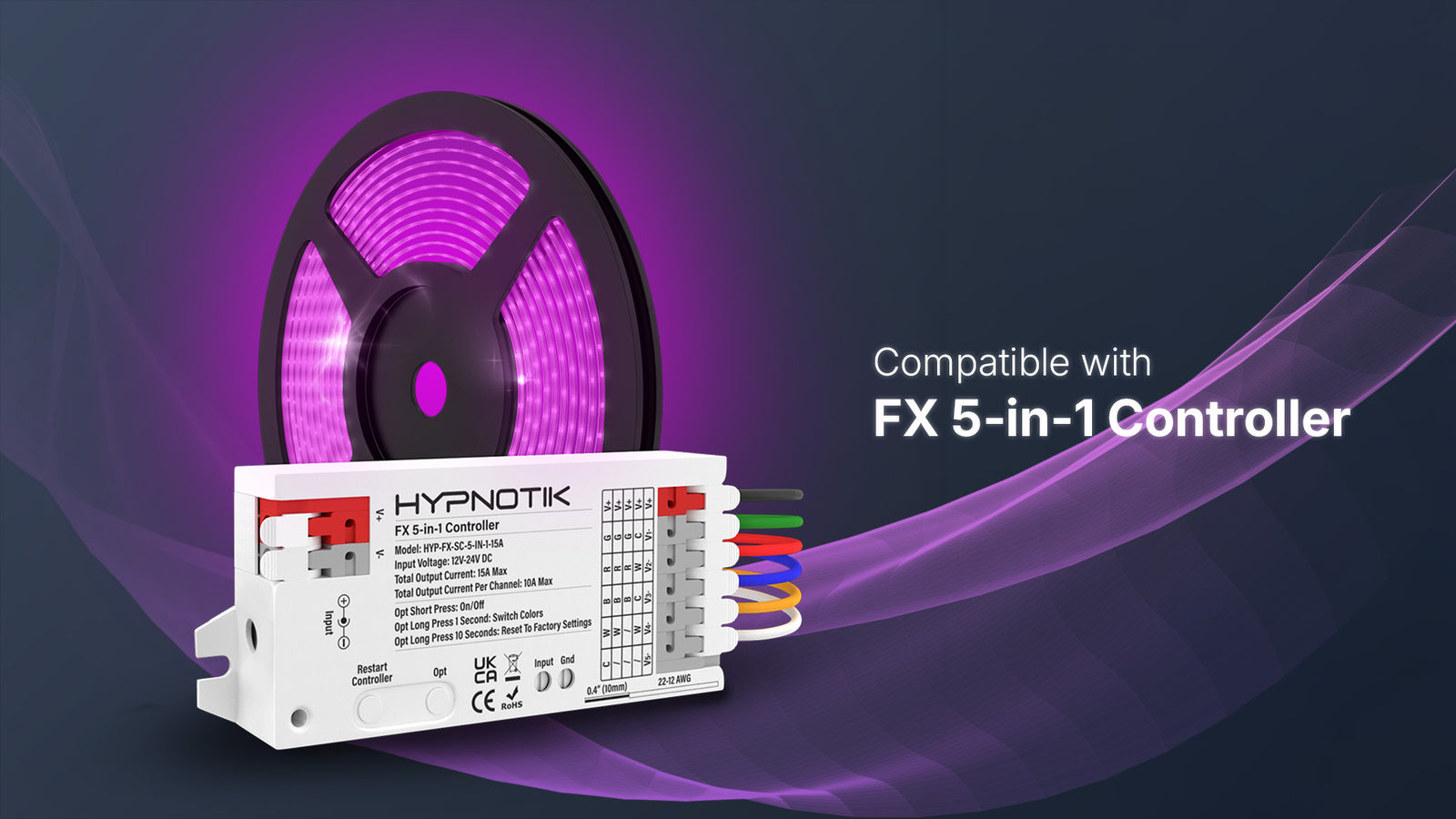

title:Seamless Controller Sync///desc:Works perfectly with the Hypnotik 5-in-1 Controller—supporting PWM lighting, multiple control methods, and quick-connect wiring for easy setup. /// url: https://steelcut.design

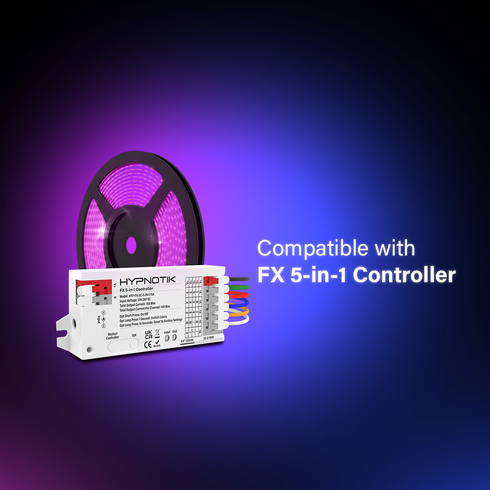

Seamless Controller Sync

Works perfectly with the Hypnotik 5-in-1 Controller—supporting PWM lighting, multiple control methods, and quick-connect wiring for easy setup.

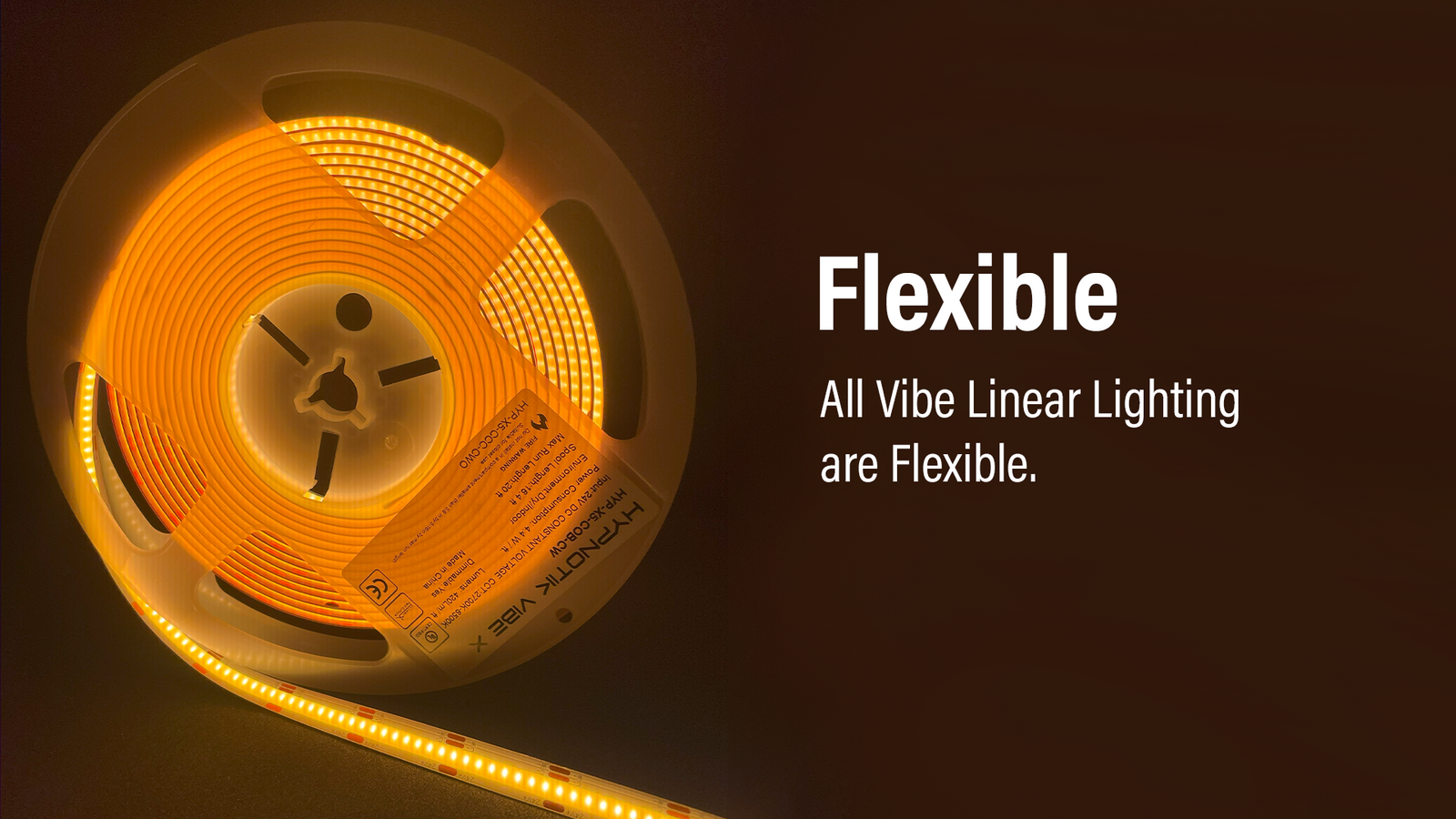

Bend Without Breaking

Engineered for tight curves and creative shapes without damaging the strip.
title:Bend Without Breaking///desc:Engineered for tight curves and creative shapes without damaging the strip.

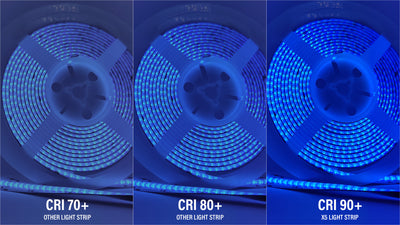

title:High Color Accuracy///desc:Engineered for true-to-life color rendering, our lighting options deliver high CRI for natural tones and vibrant detail in any setting.
title:Built to Impress ✅✅✅///desc:Supports 16 million vibrant colors, easily cuttable for custom lengths, and backed by a 5-year warranty for long-term reliability.

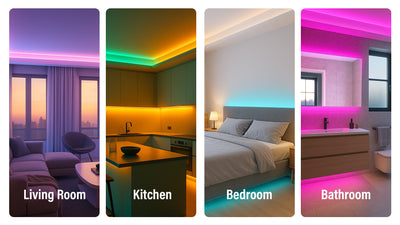

title:Versatile Applications///desc:Ideal for ambient lighting, stage setups, PC builds, and DIY projects.
