Audio Reactive Pixel Controller (Wi-Fi)
SKU: HYP-FX-SC-DIG-M-15A
Hurry! Only 0 Left in Stock!
Features
Compatible With

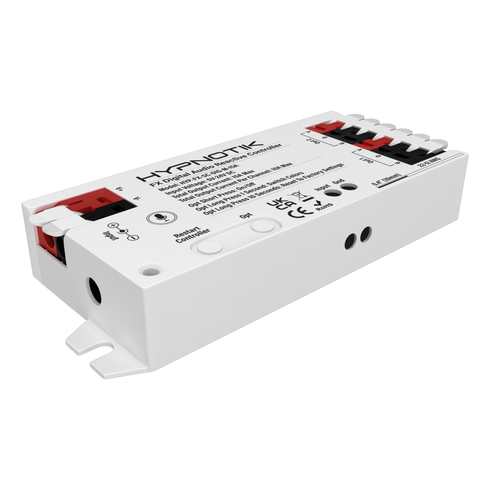

Hypnotik FX Digital Audio Reactive Controller - Music-Synced Lighting

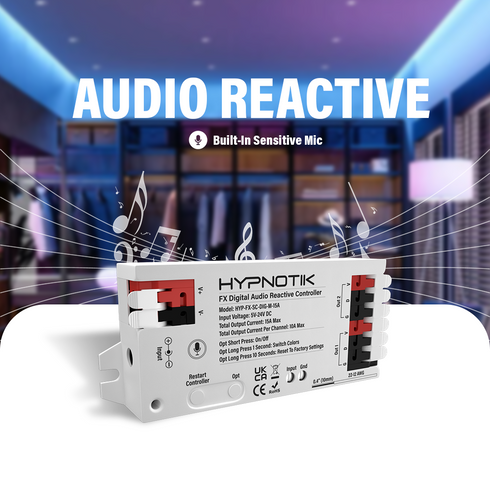

Experience dynamic lighting synced perfectly to sound with the FX Digital Audio Reactive Controller. Featuring a built-in microphone for reactive lighting effects, this controller connects and powers two individually addressable linear lighting products simultaneously, creating stunning visual experiences where every beat becomes a masterpiece.
💡 Audio Reactive Innovation: Designed for Control4 SDDP compatibility with integrated microphone technology for real-time music synchronization. Control your Vibe FX strips through Control4 touchscreens, mobile apps, web browser, and the 4BRL remote control for immersive audio-visual experiences.
Key Features:
- Built-in Microphone - Real-time audio reactive lighting effects that dance to music

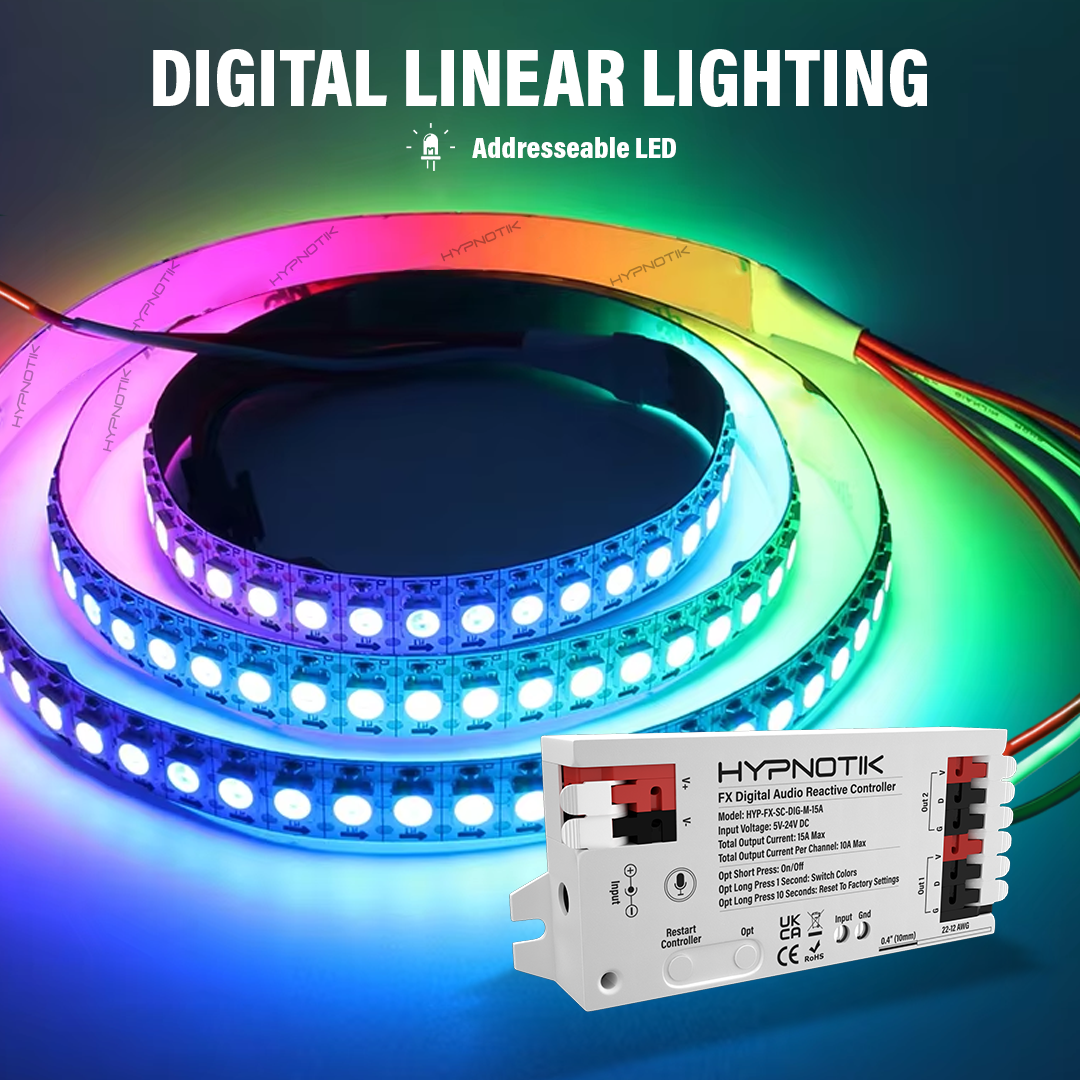

- Digital Controller - For individually addressable linear lighting products
- Dual Zone Control - Connect and control two lighting products simultaneously
- Control4 SDDP Native - Seamless automation system integration
- Multiple Control Methods - App, web browser, remote, and Control4 touchscreens

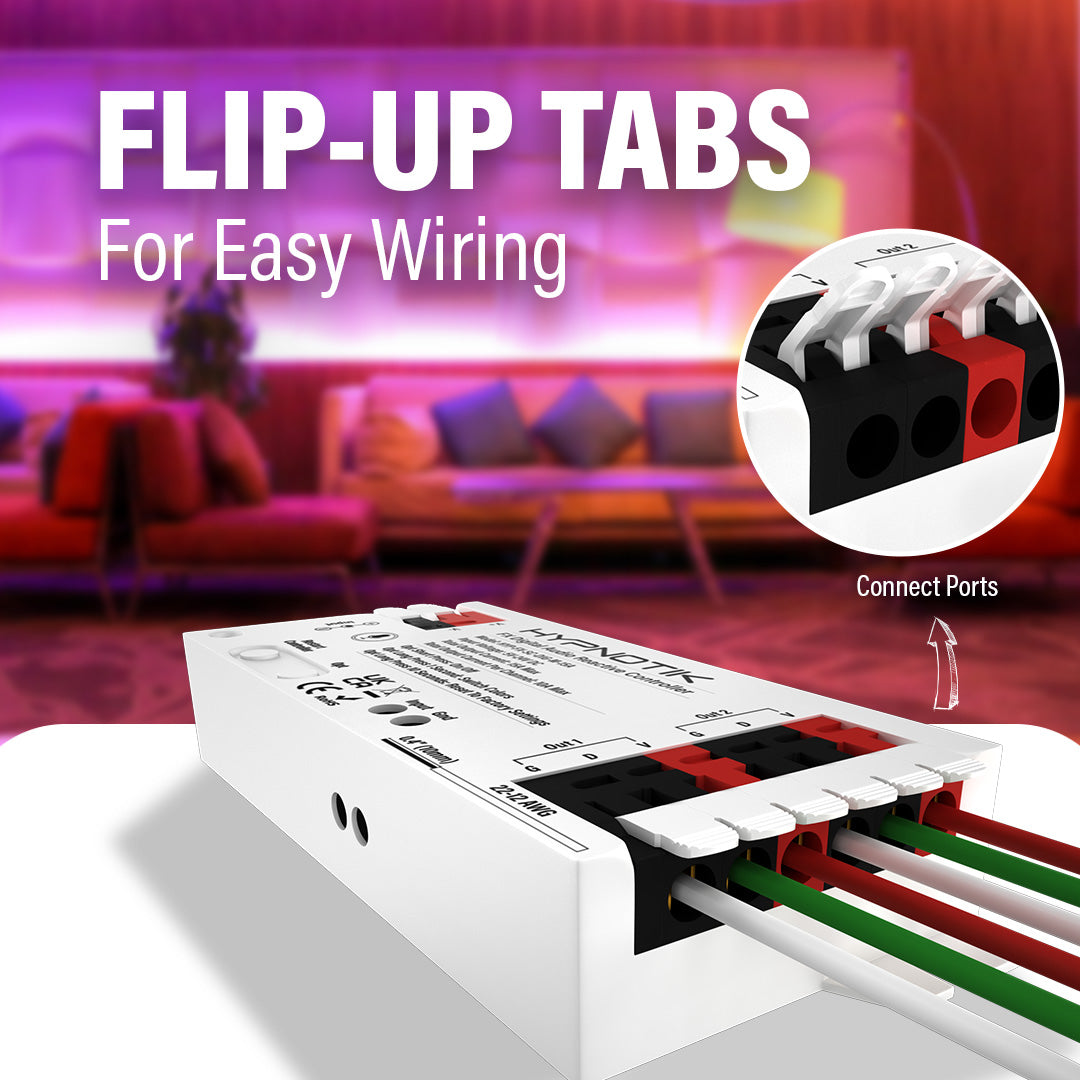

- Quick Connect Ports - Tool-free wiring with lift-and-connect design
- Wide Voltage Range - 5V-24V DC input compatibility
- High Power Output - 15A total, 10A per channel maximum
- Reliable - 7-year warranty with professional-grade construction

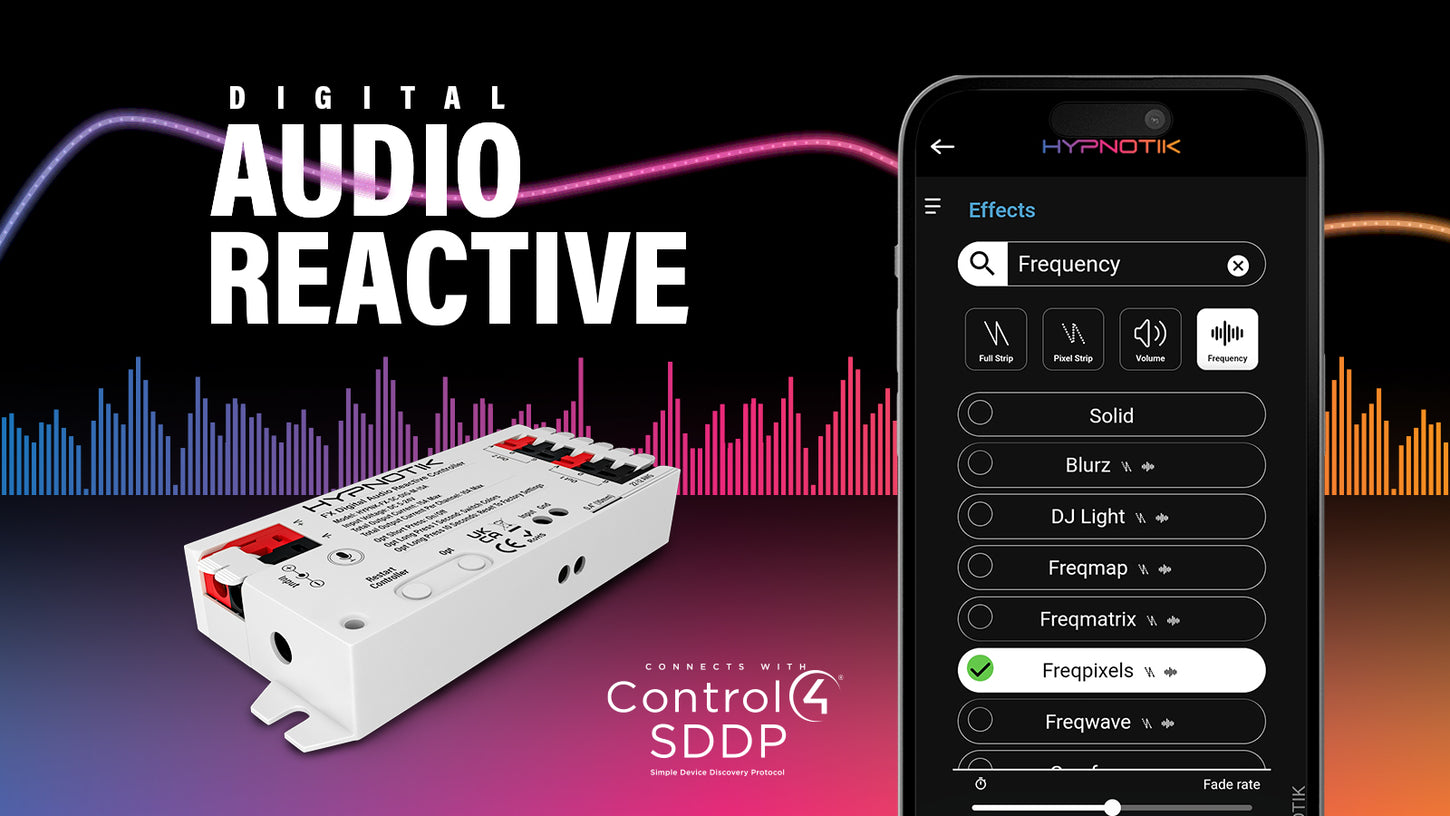

Audio Reactive Experience:
- Music Synchronization - Colors and effects respond dynamically to audio input
- Beat Detection - Advanced algorithms create lighting that follows rhythm and tempo

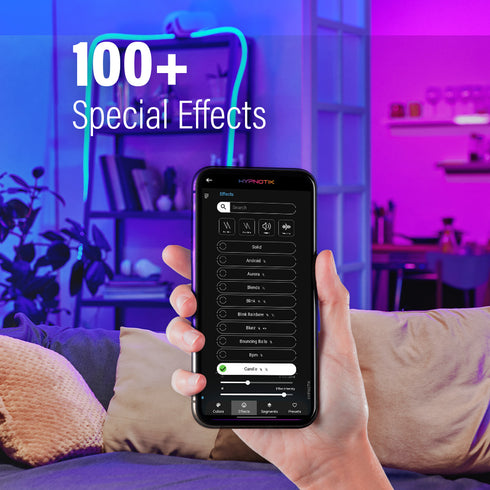

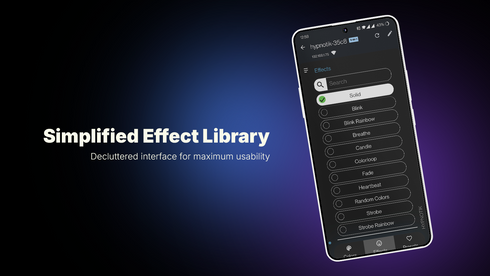

- Customizable Effects - Adjust sensitivity and response patterns through apps
- Manual Override - Switch between audio reactive and manual control modes
Perfect for: Entertainment spaces, home theaters, gaming rooms, bars, clubs, parties, and any environment where dynamic music-synchronized lighting enhances the atmosphere.
Transform any space into an immersive audio-visual experience. Compatible with Vibe FX individually addressable strips and designed for professional installations with 7-year warranty.
Specifications

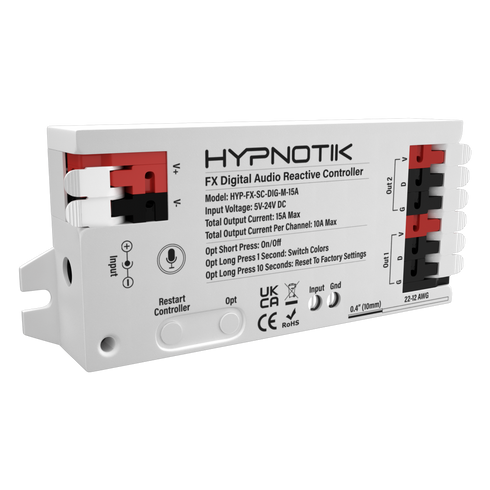

| Model | FX Digital Audio Reactive Controller |
| SKU | HYP-FX-SC-DIG-M-15A |
| Input Voltage | 5V-24V DC |
| Total Output Current | 15A Max |
| Output Current Per Channel | 10A Max |
| Audio Input | Built-in Microphone |
| Control Zones | 2 Independent Channels |
| Dimensions | 4.25" x 1.77" x 0.70" (L 108 x W 45 x H 18 mm) |
| Weather Rating | IP20 |
| Net Weight | 56.4g |
| Gross Weight | 64.3g |
| Operating Temperature | -4˚ F to 113˚ F (-20˚ C to 45˚ C) |
| Warranty | 7 years |
Documents
Downloads
FX Digital Audio Reactive Controller
Experience dynamic lighting synced perfectly to sound with the FX Digital Audio Reactive Controller—where every beat creates a masterpiece!
Control your lights remotely

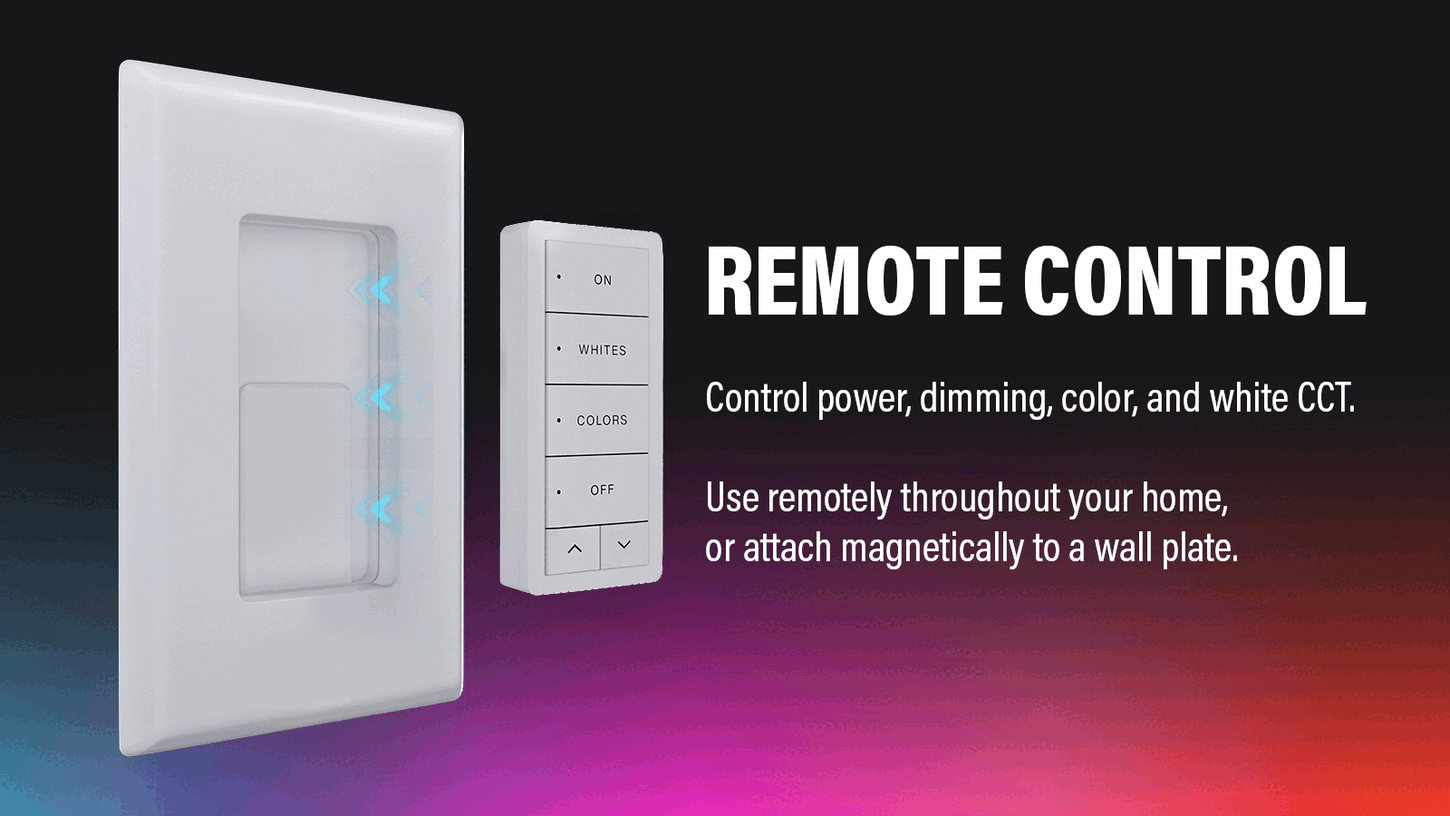

The Hypnotik FX 4BRL (4-Button + Raise / Lower) Remote Control lets you control your linear lighting’s power, dimming, color, and white CCT. Use remotely throughout your home, or attach magnetically to a wall plate.
