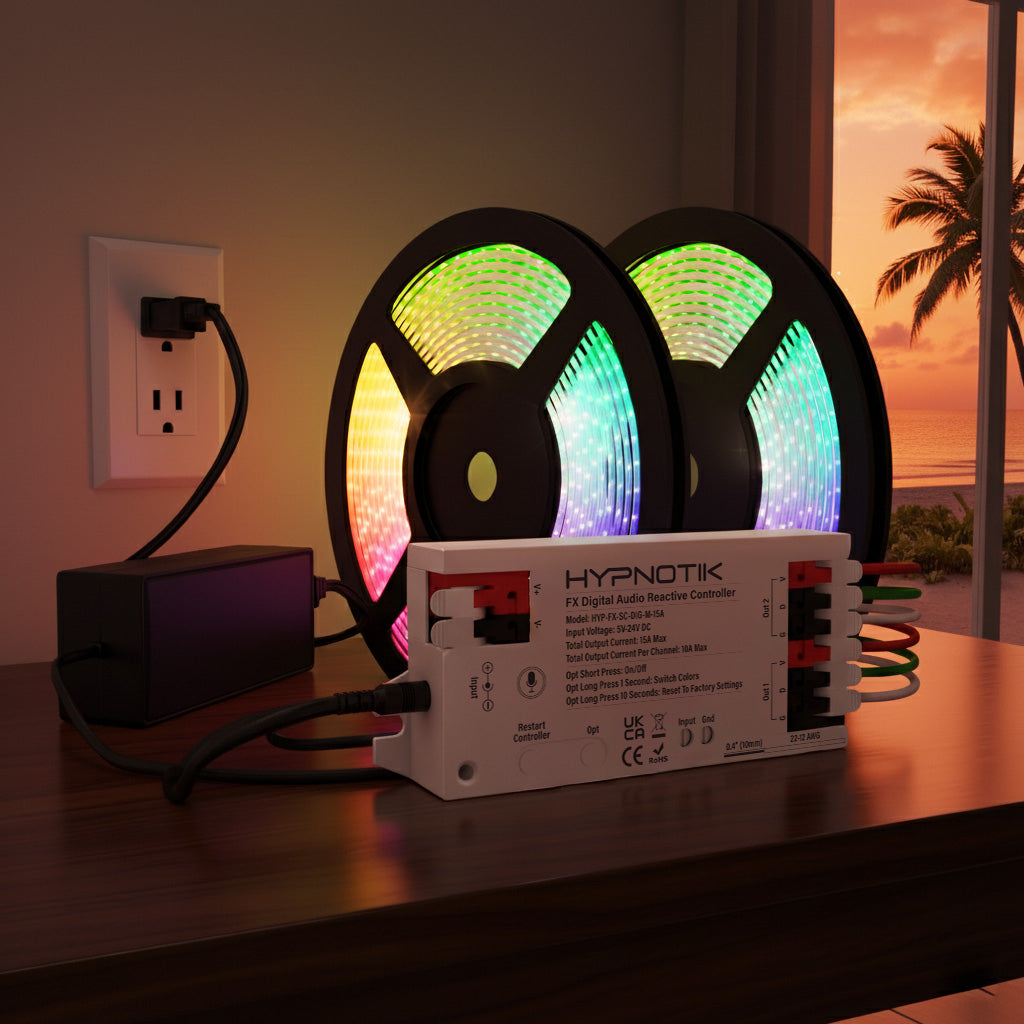

Pre-Matched Components
Tested together for guaranteed compatibility and performance.
Zoom
Audio Reactive Pixel Kit - Vibe Pixel Strip + Controller (Wi-Fi) + Power Supply
SKU: HYP-KIT-PX-COB-720-RGB
Hurry! Only 0 Left in Stock!
MSRP:
$634.97
My Price:
$248.17
MARGIN:
61%
Features
Vibe Pixel Kit - Complete Audio Reactive Lighting System
Get everything you need for dynamic audio reactive lighting in one complete kit. The Vibe Pixel Kit combines individually addressable pixel strips with zero-dot COB technology, Digital Audio Reactive controller with built-in microphone, and matched 24V power supply for immersive music-synchronized lighting experiences. Perfect for entertainment spaces, home theaters, and installations where music meets light.
🎵 Audio Reactive Magic: Professionally matched components create lights that dance to your music with real-time responsiveness. Everything included for immediate installation with individually addressable pixels, built-in microphone technology, and multiple control options through Hypnotik FX iOS and Android apps, 4BRL remote control, and automation systems.

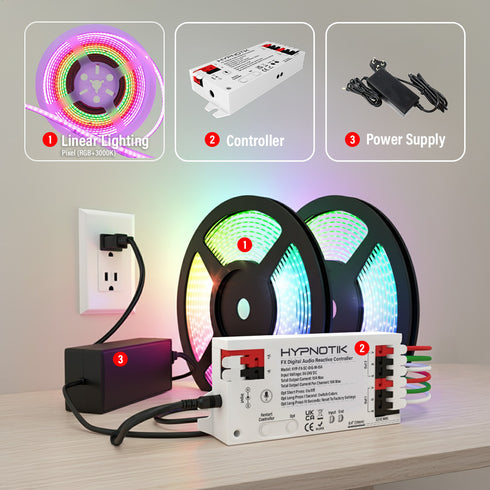

Kit Includes:
- Vibe Pixel COB Linear Lighting - Choice of COB 784LPM RGB+3000K or COB 720LPM RGB individually addressable strips with zero-dot COB technology
- Hypnotik FX Digital Audio Reactive Controller - Built-in microphone for real-time music synchronization and dual zone control
- 24V 5A Power Supply - Matched power delivery for optimal controller and system performance
- Complete Documentation - Installation guides and specifications for professional setup
System Benefits:
- Pre-Matched Components - Tested together for guaranteed audio reactive performance
- Zero-Dot COB Technology - Smooth, continuous lighting without visible LED segments
- Entertainment Ready - Everything needed for immersive audio-visual experiences
- Control4 Compatible - Seamless automation integration with SDDP support
- Dual Zone Control - Controller supports two independent lighting zones
- Complete Warranty - Full system coverage with professional support
Available Configurations:
- RGB+Warm White Kit - COB 784LPM RGB+3000K for maximum brightness and color plus warm white (250 Lm/ft, 4-channel)
- RGB Kit - COB 720LPM RGB for vibrant color effects and smooth gradients (190 Lm/ft, 3-channel)
Perfect for: Home theaters, gaming rooms, entertainment venues, bars, clubs, and any space where dynamic music-synchronized lighting enhances the atmosphere.
Transform any space into an audio-visual masterpiece with a complete, tested system. Includes full warranty coverage and professional technical support for the entire kit.
Vibe Pixel Specifications
| Model | Vibe Pixel COB 784LPM RGB+3000K | Vibe Pixel COB 720LPM RGB |
| SKU | HYP-FX-COB-784-RGBW | HYP-FX-COB-720-RGB |
| Color / CCT | RGB + 3000K | RGB |
| Roll Length | 16.4 ft (5 M) | 16.4 ft (5 M) |
| Voltage | 24 V | 24 V |
| Watts Per Foot | 6.0 W / ft | 6.0 W / ft |
| Cut Length | 0.7" (17.8 mm) | 1.09" (27.8 mm) |
| Max Run | 16.4 ft (5 M) | 16.4 ft (5 M) |
| Lumens | 250 Lm / ft | 190 Lm / ft |

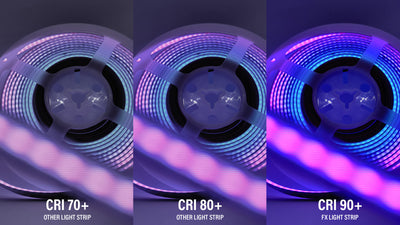

| CRI | 90+ | 90+ |
| Weather Rating | IP20 | IP20 |
| Channels | 4-Channel | 3-Channel |
| PCB Width | 12mm | 12mm |
| Backing | 3M VHB Adhesive Backing | 3M VHB Adhesive Backing |
| Operating Temperature | 41˚ F to 158˚ F (5˚ C to 70˚ C) | 41˚ F to 158˚ F (5˚ C to 70˚ C) |
| Warranty | 5 Years | 5 Years |
FX Digital Audio Reactive Controller Specifications
| Model | FX Digital Audio Reactive Controller |
| SKU | HYP-FX-SC-DIG-M-15A |
| Input Voltage | 5V-24V DC |
| Total Output Current | 15A Max |
| Output Current Per Channel | 10A Max |
| Audio Input | Built-in Microphone |
| Control Zones | 2 Independent Channels |
| Dimensions | 4.25" x 1.77" x 0.70" (L 108 x W 45 x H 18 mm) |
| Weather Rating | IP20 |
| Net Weight | 56.4g |
| Operating Temperature | -4˚ F to 113˚ F (-20˚ C to 45˚ C) |
| Warranty | 7 years |
Power Supply Specifications
| Component | 24V Power Supply |
| Output Voltage | 24V DC |
| Output Current | 5A Max |
| Total Power | 120W |
| Purpose | Powers Digital Audio Reactive Controller |
| Compatibility | Hypnotik FX Controllers |
Documents
Downloads
Product Features

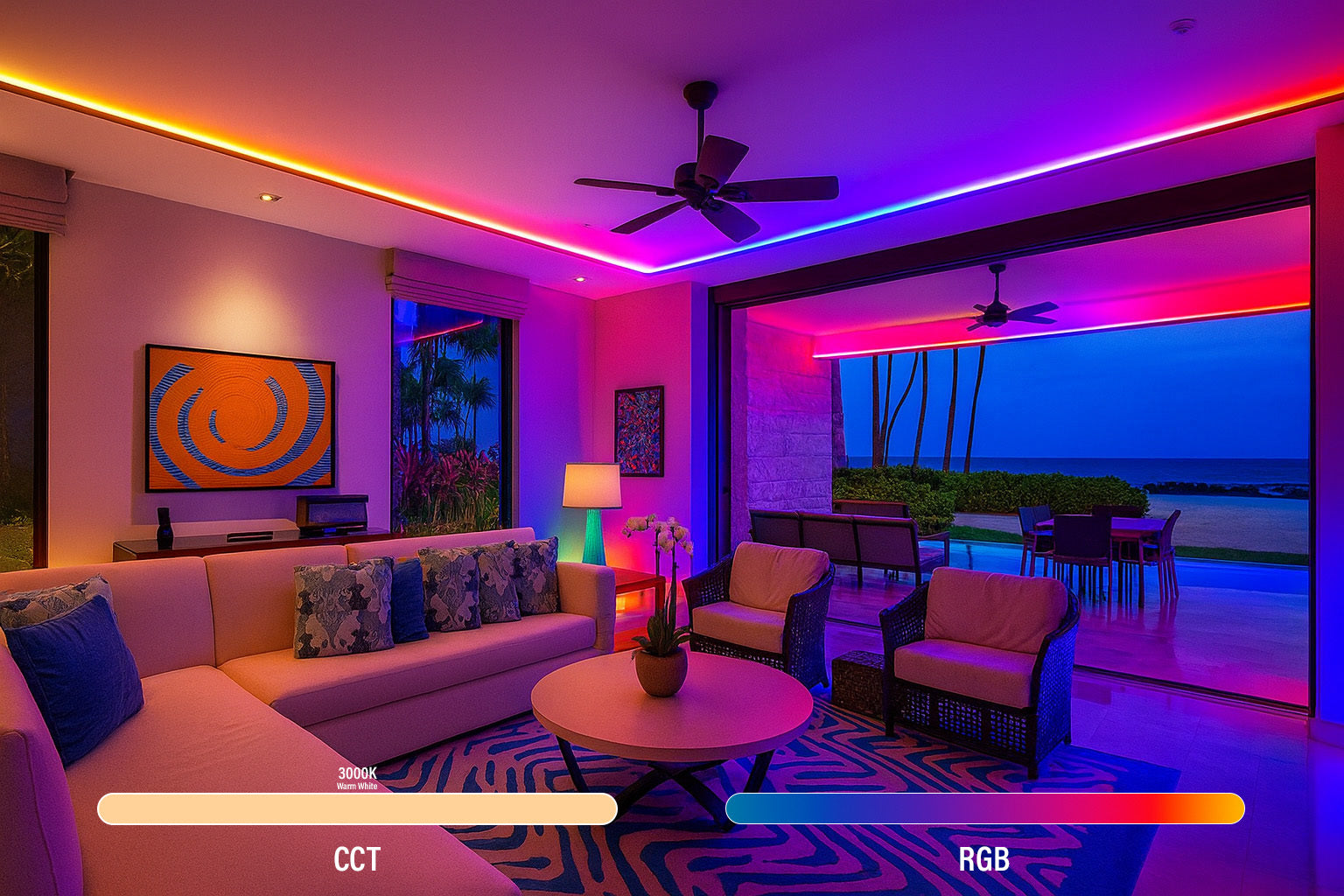

🌅 Dynamic RGB+CCT Control
Blend millions of colors with adjustable white tones—from vibrant party hues to relaxing warm light. Set the mood instantly for any space, any vibe.
📏 Flexible Length Options
Supplied in 5-meter rolls, each strip can be cut to fit smaller areas or extended—up to the maximum run length—for seamless integration into any space.
